HYDRAULIC CYLINDER FOR MACHINERY

Hydraulic Cylinder for Machinery: The Heart of Heavy Equipment Performance

In the world of heavy machinery, hydraulic systems play a crucial role in providing the force needed for efficient and precise operation. One of the key components of any hydraulic system is the hydraulic cylinder. These devices convert hydraulic energy into mechanical motion, providing the power needed to move various parts of machinery. Whether it’s a construction vehicle, industrial equipment, or agricultural machinery, hydraulic cylinders are integral to their performance and efficiency.

What is a Hydraulic Cylinder?

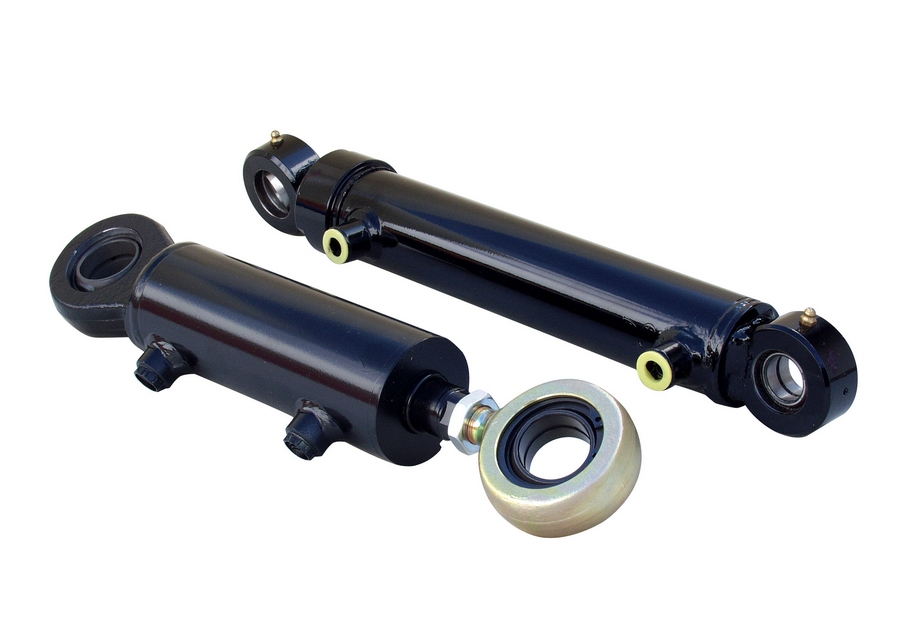

A hydraulic cylinder is a mechanical actuator that uses hydraulic fluid to generate force in a linear motion. It consists of a cylinder barrel, piston, rod, and seals. The hydraulic fluid enters the cylinder under pressure, causing the piston to move, which in turn extends or retracts the cylinder rod. This linear movement is used to drive machinery components such as arms, lifts, or other moving parts.

Hydraulic cylinders are versatile and capable of producing significant force, making them suitable for a wide range of applications in industries like construction, agriculture, automotive, and manufacturing.

Importance of Hydraulic Cylinders in Machinery

1. Power and Precision: Hydraulic cylinders are known for their ability to provide high power output with precise control. Whether it’s lifting heavy loads, pushing, pulling, or moving a machine part, hydraulic cylinders provide smooth and efficient motion.

2. Durability and Reliability: Hydraulic cylinders are built to withstand high pressures and harsh conditions. The materials used in their construction, such as hardened steel and durable seals, ensure long-term performance and reduce the likelihood of wear and failure.

3. Versatility: These cylinders come in various sizes and configurations, allowing them to be tailored to specific machinery needs. From small, lightweight cylinders to large, heavy-duty models, there’s a hydraulic cylinder suited for nearly any application.

4. Energy Efficiency: Hydraulic systems are known for their energy efficiency. Hydraulic cylinders can perform tasks with minimal energy loss, making them ideal for machinery that requires both power and precision.

Types of Hydraulic Cylinders

Hydraulic cylinders come in different types based on their design, application, and required performance. The most common types include:

• Single-Acting Cylinders: These cylinders use hydraulic pressure to extend the piston in one direction. They rely on an external force to retract the piston. These are typically used in applications where the movement in one direction is more important than the return.

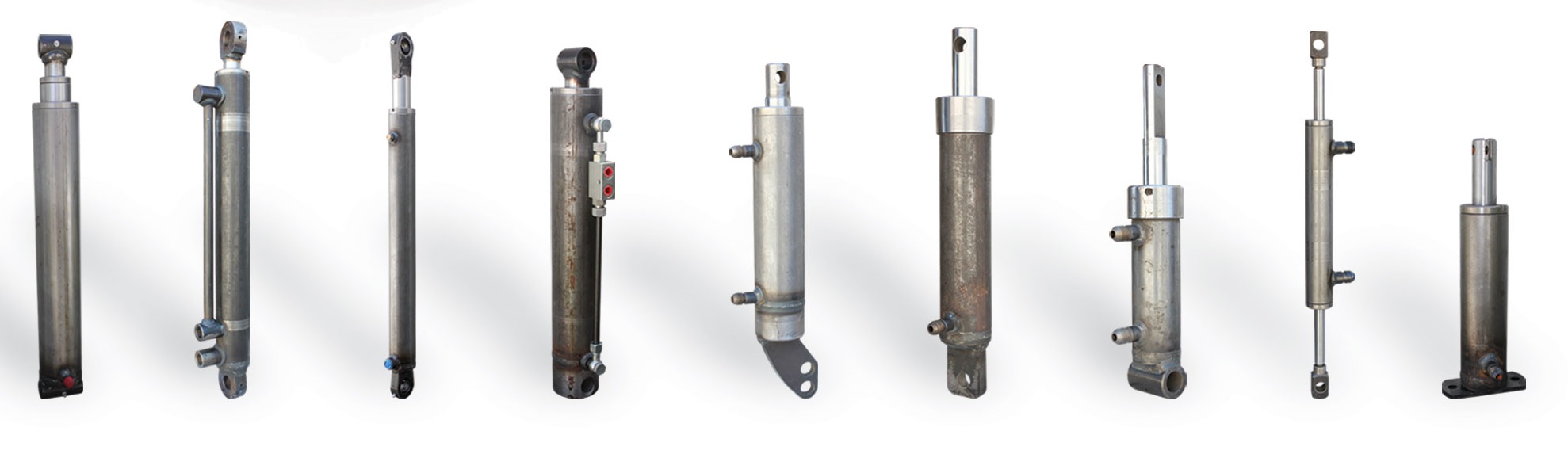

• Double-Acting Cylinders: These cylinders allow movement in both directions by using hydraulic pressure to extend and retract the piston. Double-acting cylinders are commonly used in applications requiring both extension and retraction force.

• Tie Rod Cylinders: These cylinders have a tie rod that holds the cylinder barrel, piston, and rod together. They are known for their strength and durability, making them ideal for medium to heavy-duty applications.

• Welded Cylinders: Welded cylinders feature a welded construction and are typically used in heavy-duty applications. They are highly resistant to impact and stress, making them perfect for demanding industrial operations.

Applications of Hydraulic Cylinders in Machinery

Hydraulic cylinders are found in a variety of machinery across different industries. Some of the most common applications include:

• Construction Equipment: Hydraulic cylinders are widely used in bulldozers, excavators, cranes, and loaders. They power the lifting and digging functions of these machines, enabling them to perform heavy lifting tasks.

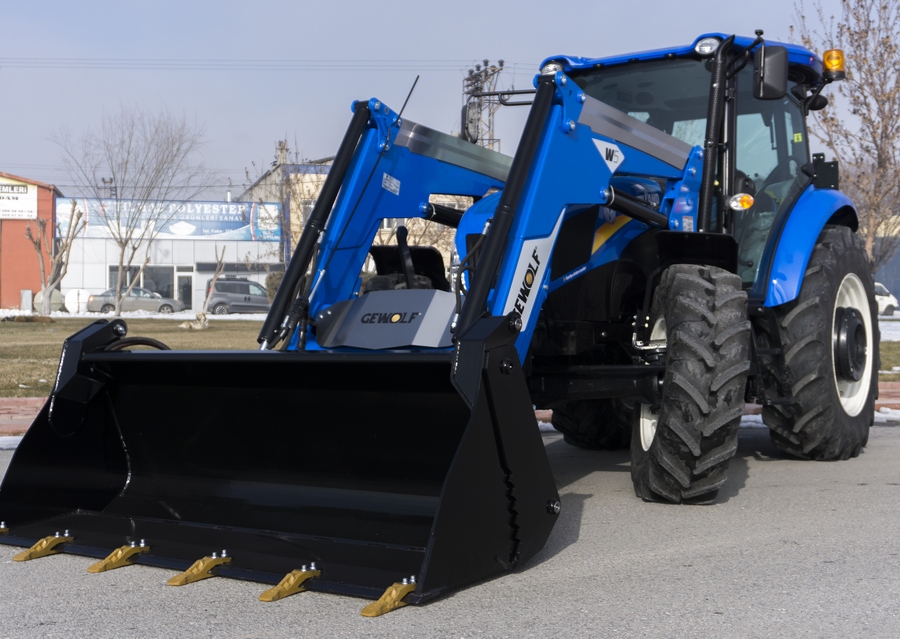

• Agricultural Machinery: Tractors, harvesters, and other farming equipment rely on hydraulic cylinders for lifting, tilting, and plowing operations.

• Material Handling: Forklifts and conveyor systems use hydraulic cylinders to move heavy loads, making these machines more efficient and reliable in warehouses and manufacturing plants.

• Automotive Industry: Hydraulic cylinders are used in various automotive applications, including suspension systems, brakes, and lifts, to enhance the vehicle’s functionality and performance.

Choosing the Right Hydraulic Cylinder for Machinery

Selecting the right hydraulic cylinder is essential for ensuring the optimal performance of your machinery. Here are some factors to consider when choosing a hydraulic cylinder for your equipment:

1. Load Capacity: Ensure that the hydraulic cylinder can handle the required load and pressure for your application. This ensures safe and efficient operation.

2. Cylinder Size and Stroke Length: The size and stroke length of the cylinder should be suitable for the specific movement required in the machinery. Measure the space and movement requirements before choosing a cylinder.

3. Seal Type: The quality of seals is crucial for preventing leaks and maintaining pressure within the hydraulic system. Choose high-quality seals that are designed for the operating environment.

4. Durability: Consider the environmental conditions in which the cylinder will operate. Harsh environments, such as extreme temperatures, dust, or moisture, require cylinders that are resistant to wear and corrosion.

5. Custom Design: In some cases, off-the-shelf hydraulic cylinders might not meet the specific needs of your machinery. Custom-designed cylinders can be tailored to fit exact specifications.

Maintenance of Hydraulic Cylinders

To ensure the long-term performance of hydraulic cylinders, regular maintenance is crucial. Here are a few maintenance tips:

• Check for Leaks: Inspect the hydraulic cylinder regularly for leaks around the seals or fittings, as even a small leak can lead to system inefficiency.

• Monitor Fluid Levels: Keep an eye on the hydraulic fluid levels to ensure optimal pressure and smooth operation. Low fluid levels can reduce cylinder performance and cause damage over time.

• Inspect for Wear: Regularly inspect the cylinder rod and seals for signs of wear or damage. Replacing worn-out components promptly can prevent costly repairs.

• Clean the System: Dirt and debris can cause damage to hydraulic systems. Clean the cylinder and surrounding areas to avoid contamination that could affect performance.

Conclusion

Hydraulic cylinders are essential components in machinery across various industries. Their ability to generate high power, maintain precision, and withstand harsh conditions makes them the go-to choice for heavy equipment operations. Whether for construction, agriculture, or material handling, the right hydraulic cylinder can ensure your machinery operates at peak efficiency. Regular maintenance and proper selection are key to getting the most out of these powerful devices, ensuring long-term reliability and performance.
